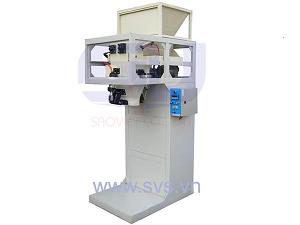

Packing weighing machine for micro-organic fertilizer PM12

1. Determining weighing process and applications:

- Don't using hopper weighing, material fall into bag directly.

- Ranger: 10kg – 50kg/bag.

- Capacity: 200 bag/h.

- Screw feeder.

- 2 or 3 feeder speed.

- Suitable for micro-organic fertilizer or powder material with humidity ~30%.

2. Control weighing system:

- Methods for weighing determination: using load cell.

- Weighing indicator and controller: used for packing and batching weighing systems, stable operation in industrial environments, easy to setup and change setting value depending on bag capacity, materials and other requirements.

- Controlled by PLC, easy to change or update.

3. Feature:

- Don't using hopper weighing, material fall into bag directly.

- Bag capacity: 50kg, 40kg, 25kg ...

- Used for PP/PE bag.

- Accuracy: +/- 100g.

- Ranger: 10kg – 50kg/bag.

- Capacity: 200 bag/h.

- Screw feeder.

- 2 or 3 feeder speed.

- Suitable for powder material.

- Power required: 220V/50Hz.

- Air supply: 5-7 kg/cm2.

4. Include equipments following:

- Body of weighing system, hopper weighing, screw feeder ... : steel or stainless steel.

- Load cell: UTE – TAIWAN, Vishay – EU, VMC – USA, AmCells – USA, Mettler Toledo – USA  <detail>

- Weighing indicator and controller: BDE – TAIWAN, Laumas – Italy, AND – Japan,  Mettler Toledo – USA … <detail>

- Controller box: used PLC (Omron, Mitsubishi, Siemens), easy to change or update

5. Options:

- Weighing software.

- Conveyor for finished bag.

- Air compressor.

- Bag sealing machine

- Sewing machine.
